Direct Connection (Windows XP)

• Restrictions

(Appears in a new window)

1. If the HOME button (A) on the printer is lit, touch the HOME button.

   If an error screen is displayed, tap OK, then touch the HOME button.



2. Tap the upper right (B) of the screen.



3. Tap Activate direct connect..



4. Tap Yes.



5. Check the SSID displayed in the printer screen.

6. Tap Details.



7. Tap Yes.



8. Check Password (network key), and then tap OK.

   You will use the SSID and Password (network key) in the subsequent steps.



9. Tap OK.

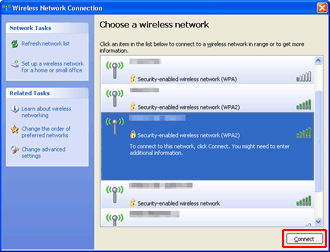

10. Right-click the Wireless Network Connection icon in the notification area of the taskbar on the computer, then select View Available Wireless Networks.



11. Select the network name (SSID) you want to use, then click Connect.



12. Enter the Password (Network key), then click Connect.

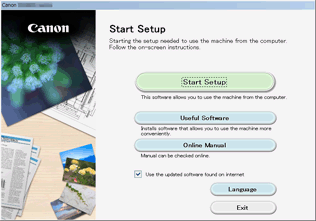

13. When connection is complete, click Back until the screen below appears.
    Proceed with the setup.
